Security Concepts - Vulnerability

Vulnerability

In the world of cybersecurity, a vulnerability is a weakness or flaw in a system, application, or network that can be exploited by attackers to gain unauthorized access, steal data, or disrupt normal operations. In this blog post, we will discuss the concept of vulnerabilities and how to mitigate them effectively.

Just like the above picture where the is a weak link that will break the strength of entire chain.

What is a Vulnerability?

A vulnerability is a weakness in a system, application, or network that can be exploited by attackers to gain unauthorized access or cause harm to the system. Vulnerabilities can occur due to coding errors, misconfigurations, or outdated software. Hackers are always on the lookout for vulnerabilities that they can exploit to gain access to sensitive information or take control of systems.



Different Types of Vulnerabilities:

There are several types of vulnerabilities that can be exploited by attackers. Let's discuss some of the most common ones.

Software Vulnerabilities:

Software vulnerabilities occur when there is a flaw or weakness in the code that can be exploited by attackers. This can include buffer overflows, SQL injection, and cross-site scripting (XSS).



Configuration Vulnerabilities:

Configuration vulnerabilities occur when the system or application is not configured correctly, making it more susceptible to attacks. This can include weak passwords, unsecured ports, and unpatched software.



Human Vulnerabilities:

Human vulnerabilities occur when people make mistakes or are tricked into giving away sensitive information. This can include phishing attacks and social engineering.



Mitigating Vulnerabilities:

Mitigating vulnerabilities is critical to maintaining the security and integrity of your systems, applications, or network. Here are some best practices to mitigate vulnerabilities effectively.

Patch Management:

Keep your systems and software up-to-date with the latest security patches and updates.

Use Strong Passwords:

Use strong passwords that are difficult to guess, and enforce password policies across your organization.

Regular Scanning and Testing:

Regularly scan and test your systems and applications for vulnerabilities and address any issues that are found.

Education and Training:

Educate employees on cybersecurity best practices and provide training on how to identify and avoid potential vulnerabilities.


Vulnerability to a Server:

One of the most common vulnerabilities to a server is an unsecured port. In this type of vulnerability, the server is listening on a port that is open and accessible to the internet, making it more susceptible to attacks. The diagram below illustrates a vulnerability to a server.




Conclusion:

Vulnerabilities are a real and ever-present danger in today's digital world. It is crucial to understand the different types of vulnerabilities and how to mitigate them effectively to maintain the security and integrity of your systems, applications, or network. By following the best practices outlined above and staying vigilant, you can protect yourself from cyber threats and ensure that your digital assets remain safe and secure.




Security Concepts - Threat

Threat




In today's digital age, where technology has become an integral part of our lives, the risk of cyber threats has increased substantially. A threat is an event or occurrence that has the potential to harm your systems, data, or network. Threats can be intentional or unintentional, and they can come from both external and internal sources. In this blog post, we will discuss the concept of a threat and how to mitigate it effectively.

What is a Threat?

A threat is any potential danger or attack that can compromise the security of your systems, data, or network. Threats can come in various forms, including malware, phishing attacks, ransomware, DDoS attacks, and more. The primary objective of these attacks is to steal or damage your data, disrupt your network, or compromise your system's integrity.




Different Types of Threats:

There are several types of threats that can harm your system or network. Let's discuss some of the most common ones.

Malware Threats:

Malware is any software that is designed to harm or exploit your system. This includes viruses, worms, Trojans, and more.

Phishing Threats:



Phishing is a social engineering attack where the attacker sends fake emails or messages to trick the user into revealing their sensitive information like passwords, credit card numbers, or other personal details.



DDoS Threats:

DDoS stands for Distributed Denial of Service, where the attacker floods the system with traffic to overwhelm the server and make it unavailable to legitimate users.



Insider Threats:

Insider threats come from people within the organization who have access to sensitive data or network systems. These threats can be intentional or unintentional.



Mitigating Threats:

Preventing threats is critical to maintaining the security and integrity of your systems, data, or network. Here are some best practices to mitigate threats effectively.

Install Antivirus Software:

Antivirus software is designed to detect and remove malware threats from your system.

Implement Firewalls:

Firewalls are security barriers that prevent unauthorized access to your network and data.

Use Multi-Factor Authentication:

Multi-Factor Authentication (MFA) is an extra layer of security that requires the user to provide two or more authentication factors to gain access to a system.

Educate Users:

Educating users about cybersecurity best practices can go a long way in preventing threats. This includes training them on how to identify and avoid phishing attacks, not clicking on suspicious links, and not downloading unknown files.

Webserver Attack from the Internet:

One of the most common threats to a web server is a Distributed Denial of Service (DDoS) attack. In this type of attack, the attacker floods the server with traffic, making it unavailable to legitimate users. The diagram below illustrates a DDoS attack on a web server.





Conclusion


Threats are a real and ever-present danger in today's digital world. It is crucial to understand the different types of threats and how to mitigate them effectively to maintain the security and integrity of your systems, data, and network. By following the best practices outlined above and staying vigilant, you can protect yourself from cyber threats and ensure that your digital assets remain safe and secure.






File Transfer

File Transfer

File transfer is a common task in networking, and two protocols that are commonly used for this purpose are TFTP and FTP. TFTP stands for Trivial File Transfer Protocol, while FTP stands for File Transfer Protocol. In this blog post, we will describe the capabilities and functions of TFTP and FTP in the network.

What is TFTP/FTP in the network?

TFTP and FTP are both protocols used for file transfer over a network. They are commonly used to transfer files between clients and servers, or between two servers. TFTP is a simple protocol that is used to transfer configuration files to network devices, such as routers and switches but it is not a secure one. FTP, on the other hand, is a more advanced protocol that is commonly used for transferring large files, such as multimedia files, between computers.

How are TFTP/FTP used in real-time?

In real-time, TFTP is commonly used to transfer configuration files to network devices. This is because TFTP is a simple protocol that does not require much bandwidth or processing power. FTP, on the other hand, is commonly used for transferring large files, such as multimedia files, between computers. This is because FTP is a more advanced protocol that can handle large file transfers efficiently.

Diagram showing Host Trying to file transfer to FTP and TFTP server



The above diagram shows a client trying to transfer a file to a TFTP server. The flow of communication between the client and the server using the TFTP protocol is shown. The client sends a GET/PUT request to the server, and the server responds with the file. The diagram shows the two end-points of the communication, i.e., the client and the TFTP server.

TFTP uses User Datagram Protocol (UDP) as its transport protocol, and typically runs on port 69. It is a connectionless protocol, which means that it does not establish a connection before transferring data. TFTP also has a limited set of commands, such as get and put, and does not support authentication or encryption.




The above diagram shows a client trying to transfer a file to an FTP server. The flow of communication between the client and the server using the FTP protocol is shown. The client first sends a LIST command to obtain a list of available files, and then sends a GET/PUT command to transfer the desired file to the server. The server responds by sending the requested file. The diagram shows the two end-points of the communication, i.e., the client and the FTP server.


FTP uses Transmission Control Protocol (TCP) as its transport protocol, and typically runs on port 21. It is a connection-oriented protocol, which means that it establishes a connection before transferring data. FTP has a more extensive set of commands, such as list, delete, and rename, and also supports authentication and encryption.

Major differences between TFTP/FTP server

There are several major differences between TFTP and FTP servers, including:

Authentication and encryption: FTP supports authentication and encryption, while TFTP does not.
Connection-oriented vs connectionless: FTP is connection-oriented, while TFTP is connectionless.
Command set: FTP has a more extensive set of commands than TFTP.
Port numbers: FTP typically runs on port 21, while TFTP typically runs on port 69.

Use cases: TFTP is commonly used for transferring configuration files to network devices, while FTP is commonly used for transferring large files between computers.

Conclusion

In conclusion, TFTP and FTP are both protocols used for file transfer over a network. TFTP is a simple protocol that is commonly used to transfer configuration files to network devices, while FTP is a more advanced protocol that is commonly used for transferring large files between computers. Understanding the capabilities and functions of these protocols is important for anyone working in the networking field.

DHCP Relay

 Configuring & Verifying DHCP client and relay


Introduction



Dynamic Host Configuration Protocol (DHCP) is a network protocol used to assign IP addresses and other network configuration parameters dynamically to devices on a network. DHCP clients are devices that request an IP address and other configuration parameters from a DHCP server. DHCP relay agents are devices that help DHCP clients on one network segment communicate with DHCP servers on another network segment.

In this blog post, we will discuss DHCP relay agents and how they can be configured on Cisco devices. We will also provide a diagram showing a DHCP client communicating with a DHCP server outside of its subnet, and walk through the configuration and packet flow. Finally, we will use show commands to validate the DHCP output and IP address assignment on the client, router/gateway, and DHCP server.

What is a DHCP relay agent?

A DHCP relay agent is a device that receives DHCP broadcast messages from DHCP clients on one network segment and forwards them to a DHCP server on another network segment. The DHCP relay agent adds its own IP address to the DHCP packet as the "giaddr" (gateway IP address) and then forwards the packet to the DHCP server.

DHCP relay agents are typically used in larger networks where multiple network segments are present, and DHCP servers are not located on the same subnet as the DHCP clients. By using a DHCP relay agent, DHCP clients can still obtain IP addresses and other configuration parameters even though the DHCP server is not located on the same subnet.

 Here in this picture:In a relay run, the baton is passed from one runner to the next until the team completes the race. Similarly, in a DHCP relay agent, DHCP messages are passed from one network segment to another until a client obtains an IP address.



Below is a diagram showing a DHCP client communicating with a DHCP server outside of its subnet, with a DHCP relay agent in between:





Configuration and packet flow


Let's walk through the configuration and packet flow for the diagram above.

                                                Switch Configuration:

There is no specific configuration required on the switch for DHCP relay.

                                                Router Configuration:

    a. Configure the router interfaces connected to the switch and the DHCP server:

interface GigabitEthernet0/0
ip address 192.168.1.254 255.255.255.0
!
interface GigabitEthernet0/1
ip address 10.10.10.1 255.255.255.0

    b. Enable DHCP relay agent on the router's interface connected to the switch:

interface GigabitEthernet0/0
ip helper-address 10.10.10.2

This command tells the router to forward DHCP requests received on this interface to the DHCP server with IP address 10.10.10.2.

                                                DHCP Server Configuration:

        a. Configure the DHCP pool and the IP address range for the subnet:

ip dhcp pool dhcp_pool
network 10.10.10.0 255.255.255.0
default-router 10.10.10.1
dns-server 8.8.8.8
lease 7

        b. Enable DHCP service on the server's interface connected to the subnet:

interface GigabitEthernet0/0
ip address 10.10.10.2 255.255.255.0
no shutdown
service dhcp

                                                Client Configuration:

Set the client to use DHCP to obtain an IP address. This is typically done through the client's network settings or by running the ipconfig /renew command on Windows or dhclient command on Linux.

That's it! With these configurations in place, the DHCP client should be able to obtain an IP address from the DHCP server, even though they are in different subnets.


Packet flow


  • The DHCP client sends a broadcast DHCP discover message to obtain an IP address.

  • The DHCP relay agent receives the broadcast message and adds its own IP address (10.10.10.1) as the giaddr before forwarding the message to the DHCP server (10.10.10.2).

  • The DHCP server receives the DHCP discover message, allocates an IP address and other configuration parameters, and sends a DHCP offer message to the DHCP relay agent.

  • The DHCP relay agent receives the DHCP offer message, replaces its own IP address (10.10.10.1) with the client's IP address (192.168.1.1) as the giaddr, and forwards the message to the DHCP client.

  • The DHCP client receives the DHCP offer message and sends a DHCP request message to confirm the allocation of the offered IP address.

  • The DHCP relay agent receives the DHCP request message, replaces the giaddr with the client's IP address (192.168.1.1), and forwards the message to the DHCP server.

  • The DHCP server receives the DHCP request message, acknowledges the allocation of the IP address, and sends a DHCP acknowledgement message to the DHCP relay agent.

  • The DHCP relay agent receives the DHCP acknowledgement message, replaces its own IP address (10.10.10.1) with the client's IP address (192.168.1.1), and forwards the message to the DHCP client.

  • The DHCP client receives the DHCP acknowledgement message and configures its IP address and other configuration parameters.

Validating the DHCP output and IP address assignment


To validate the DHCP output and IP address assignment, we can use the following show commands:

  • show ip dhcp binding: displays a list of all IP addresses assigned by the DHCP server and their lease expiration times.

  • show ip dhcp pool: displays information about the DHCP address pool, including the range of IP addresses, the subnet mask, and the default gateway.

  • show ip dhcp server statistics: displays statistics about the number of DHCP requests received, DHCP offers sent, DHCP acknowledgements sent, and DHCP declines sent.

  • show ip interface brief: displays a summary of the IP address, status, and protocol information for all interfaces on the device.

  • show running-config interface <interface-name>: displays the configuration of the specified interface.


By using these show commands, we can verify that the DHCP client has received an IP address from the DHCP server and that the DHCP relay agent has correctly forwarded DHCP messages between the client and the server.

Conclusion

In this blog post, we have discussed DHCP relay agents and how they can be configured on Cisco devices. We have provided a diagram showing a DHCP client communicating with a DHCP server outside of its subnet, and walked through the configuration and packet flow. Finally, we have used show commands to validate the DHCP output and IP address assignment on the client, router/gateway, and DHCP server. By following these steps, you can configure and verify DHCP client and relay on your network.

Syslog

Syslog

Syslog is a standard protocol used for transmitting event messages from networking devices such as routers, switches, firewalls, and servers to a centralized logging server called a Syslog server. Syslog messages contain important information about device activity, including error messages, system events, and security alerts. In this blog, we will discuss the features and benefits of Syslog, including facilities and levels, how to configure Syslog on Cisco devices, and well-known tools used for Syslog analysis.

What is Syslog?




Syslog is a standard protocol that allows network devices to send event messages to a Syslog server. These messages contain important information about device activity, including system events, error messages, and security alerts. Syslog messages are sent over UDP or TCP protocols, depending on the configuration. Syslog is widely used in enterprise environments for centralized logging and analysis of network activity.

How to configure Syslog on Cisco devices?

To configure Syslog on Cisco devices, follow these steps:

Enable Syslog on the device by using the "logging" command.
Specify the destination of the Syslog messages by using the "logging host" command.
Specify the logging level for the messages by using the "logging trap" command.
Configure the Syslog facility to be used by using the "logging facility" command.


Here is an example of configuring Syslog on a Cisco device:

logging enable
logging host 192.168.1.100
logging trap informational
logging facility local6


This configuration enables Syslog, sets the destination of the Syslog messages to IP address 192.168.1.100, sets the logging level to informational, and sets the Syslog facility to local6.

Syslog Flow:


The following diagram shows the flow of Syslog messages from a device to a Syslog server:





When a device generates a Syslog message, it sends it to the configured Syslog server using UDP or TCP protocols. The Syslog server receives the messages and stores them in a file or database for further analysis.

Syslog Facilities and Levels:


Syslog messages are categorized into facilities and levels. Facilities are used to classify messages based on their source, while levels are used to classify messages based on their severity.

There are eight Syslog facilities, including:

  • Kernel messages
  • User-level messages
  • Mail system messages
  • System daemons
  • Security/authorization messages
  • Messages generated internally by Syslog
  • Line printer messages
  • Network news subsystem

There are eight Syslog levels, including:

  • Emergency: system is unusable
  • Alert: action must be taken immediately
  • Critical: critical conditions
  • Error: error conditions
  • Warning: warning conditions
  • Notice: normal but significant condition
  • Informational: informational messages
  • Debug: debug-level messages

Use Cases of Syslog:

Syslog is used in enterprise environments for centralized logging and analysis of network activity. Some use cases of Syslog include:

Security monitoring: Syslog messages can be used to detect security breaches and suspicious activity on the network.
Troubleshooting: Syslog messages can be used to identify and resolve issues with network devices.
Performance monitoring: Syslog messages can be used to monitor network performance and identify bottlenecks.
Compliance auditing: Syslog messages can be used to ensure compliance with industry regulations and internal policies.


Well-known Tools for Syslog:


There are several well-known tools used for Syslog analysis, including:

Splunk: a commercial log management platform that allows you to search, monitor,and analyze Syslog messages in real-time.

ELK Stack: a free and open-source log management platform that allows you to collect, store, and analyze Syslog messages.

Nagios Log Server: a commercial log management platform that allows you to collect, analyze, and alert on Syslog messages.


Conclusion

Syslog is a powerful protocol used for transmitting event messages from networking devices to a centralized logging server. Syslog messages contain important information about device activity, including error messages, system events, and security alerts. Facilities and levels are used to classify messages based on their source and severity. Syslog is widely used in enterprise environments for centralized logging and analysis of network activity. Well-known tools such as Graylog, Splunk, ELK Stack, Nagios Log Server, and Kiwi Syslog Server can be used to collect, store, and analyze Syslog messages.

Snmp Basics

 Simple Network Management Protocol (SNMP)




Simple Network Management Protocol (SNMP) is a protocol used to manage and monitor network devices. It provides a way to collect and organize information about network devices such as routers, switches, servers, and printers, and allows network administrators to monitor their performance and troubleshoot problems. In this blog post, we'll explain the function of SNMP in network operations, how it's configured on Cisco devices, and the different versions of SNMP.

What is SNMP?

SNMP is an Internet Standard protocol used to manage and monitor devices on a network. It provides a way for network administrators to remotely monitor and configure network devices such as routers, switches, servers, and printers. SNMP works by sending messages, called "protocol data units" (PDUs), between the SNMP agent on the device being managed and the SNMP manager, which is typically a software application running on a computer.



Configuring SNMP on Cisco Devices

SNMP is configured on Cisco devices using the Cisco IOS command-line interface (CLI). The following commands can be used to configure SNMP on a Cisco device:

enable
configure terminal
snmp-server community <community-string> RO
snmp-server host <ip-address> version 2c <community-string>
end

The snmp-server community command sets the read-only (RO) community string, which is like a password that allows access to SNMP information. The snmp-server host command specifies the IP address of the SNMP manager and the community string.

SNMP Flow Diagram

Here is a simplified flow diagram showing how SNMP works between a device and an SNMP manager:




The SNMP manager sends a Get or Set request to the SNMP agent, which then accesses the MIB (Management Information Base) to retrieve or modify the requested information. The SNMP agent then sends a Get or Set response back to the SNMP manager.

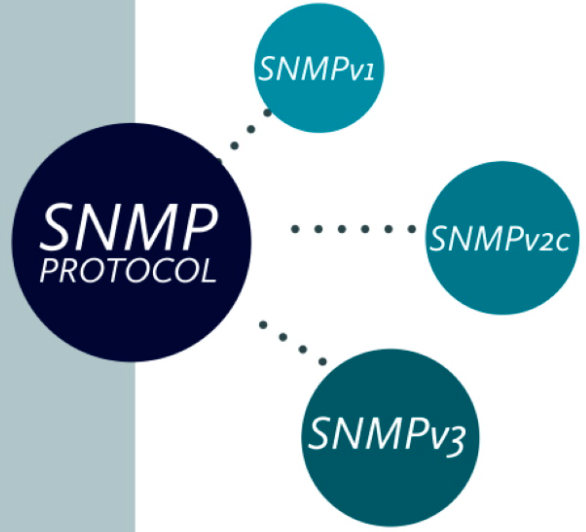

SNMP Versions and Differences




There are three versions of SNMP: SNMPv1, SNMPv2c, and SNMPv3. The main differences between the versions are their security features and capabilities.

SNMPv1 is the original version of SNMP and has limited security features. It uses a community string to authenticate access to SNMP information, which is transmitted in clear text. SNMPv1 also has limited error handling capabilities.

SNMPv2c is an updated version of SNMPv1 that adds more features and improved error handling. It also introduces a new PDU, called the GetBulkRequest PDU, which allows for more efficient retrieval of large amounts of data from the MIB.

SNMPv3 is the most recent version of SNMP and adds more robust security features. It uses encryption and authentication to protect SNMP information and includes support for user-based access control. It also introduces a new PDU, called the InformRequest PDU, which allows for more reliable delivery of SNMP messages.


Use Cases of SNMP and Popular SNMP Tools

SNMP is used in a wide range of use cases, including:

Network monitoring: SNMP is commonly used to monitor network performance, including bandwidth usage, CPU and memory utilization, and network errors.

Device configuration: SNMP can be used to configure network devices, including setting parameters such as IP addresses and port settings.

Fault management: SNMP can be used to detect and diagnose faults in network devices, such as failed power supplies or network connectivity issues.


There are several popular SNMP tools available that can be used to monitor and manage SNMP-enabled devices. Some of the most popular tools include:

Nagios: A popular open-source network monitoring tool that supports SNMP monitoring.

SolarWinds Network Performance Monitor: A commercial network monitoring tool that supports SNMP monitoring and provides real-time network performance metrics.

Zabbix: An open-source network monitoring tool that supports SNMP monitoring and provides detailed performance metrics and alerts.

Conclusion

SNMP is an essential protocol for managing and monitoring network devices. It provides a way to collect and organize information about network devices, allowing network administrators to monitor their performance and troubleshoot problems. By understanding how SNMP works, how it's configured on Cisco devices, and the different versions and use cases of SNMP, network administrators can effectively manage and monitor their networks.

DNS-stands-for

DNS within the network



DNS (Domain Name System) is a vital component of the internet that helps translate human-readable domain names into IP addresses. In essence, DNS is responsible for directing your computer to the right server to load the website you want to access. While we often hear about DNS in the context of the internet at large, DNS is also used within local networks to manage local resources. In this blog, we will discuss DNS within the network, how it is used, and the DNS process.

What is DNS within the network?




DNS within the network refers to the use of DNS to manage local resources within an organization or enterprise. When an organization sets up a local network, it may have its own domain name (e.g., company.com) that is used to identify its resources. DNS within the network is used to map the domain name of the resources to their corresponding IP addresses.

How is DNS used within the network?

DNS within the network is used to manage local resources such as servers, printers, and other devices that are connected to the network. When a user tries to access a local resource by its domain name, the DNS within the network will translate the domain name to the IP address of the resource. This allows the user to access the resource without having to know its IP address.

DNS Process



The DNS process involves several steps that must take place for a user to access a website or resource.

Step 1: The User Enters a URL

When a user enters a URL (Uniform Resource Locator) into their browser, the browser will first check its cache to see if it has the IP address of the website. If the browser has the IP address, it will connect to the website using the IP address. If the browser does not have the IP address, it will initiate a DNS query to resolve the domain name.



Step 2: The DNS Query

When the browser initiates a DNS query, it sends a request to the local DNS resolver. The local DNS resolver is a server that is configured to handle DNS requests for the local network. The request includes the domain name that the browser is trying to resolve.



Step 3: The Local DNS Resolver Searches Its Cache

The local DNS resolver will first check its cache to see if it has the IP address for the domain name. If it has the IP address, it will return the IP address to the browser, and the browser will connect to the website using the IP address.

Step 4: The Local DNS Resolver Queries the Root DNS Servers

If the local DNS resolver does not have the IP address for the domain name, it will initiate a query to the root DNS servers. The root DNS servers are a network of servers that are responsible for maintaining a database of all the top-level domain names (e.g., .com, .org, .net).



Step 5: The Root DNS Servers Refer the Query to the TLD DNS Servers

The root DNS servers will refer the query to the TLD (Top-Level Domain) DNS servers based on the top-level domain of the domain name being queried. For example, if the domain name being queried is www.google.com, the root DNS servers will refer the query to the .com TLD DNS servers.



Step 6: The TLD DNS Servers Refer the Query to the Authoritative DNS Servers

The TLD DNS servers will refer the query to the authoritative DNS servers for the domain name being queried. The authoritative DNS servers are the servers that are responsible for maintaining the DNS records for the domain name.



Step 7: The Authoritative DNS Servers Respond with the IP Address

The authoritative DNS servers will respond to the query with the IP address of the domain name. The local DNS resolver will cache the IP address for future use, and it will return the IP address to the browser.


Step 8: The Browser Connects to the Website Using the IP Address

Finally, with the IP address of the website, the browser can connect to the website server, which will send the requested webpage back to the browser for display.


Conclusion


DNS within the network is essential for managing local resources and making them accessible to users via their domain names. The DNS process involves several steps that must take place for a user to access a website or resource. By understanding how DNS within the network works, network administrators can ensure that their resources are accessible and can troubleshoot any issues that may arise.








DHCP meaning

DHCP


Dynamic Host Configuration Protocol (DHCP) is a network protocol used to dynamically assign IP addresses and other network configuration parameters to devices on a network. It provides an automated way of configuring hosts with network settings required to communicate on a network. In this blog post, we will explore the role of DHCP within the network, how it works, and the process involved in a DHCP registration.

What is DHCP?

DHCP is a client-server protocol that automatically assigns IP addresses to hosts on a network. It eliminates the need for network administrators to manually assign IP addresses to each device, thereby reducing the chances of errors and saving time.

Just like below picture , Network engineer stress about loosing static IP's







How does DHCP work?

DHCP uses a client-server model, where a DHCP server is responsible for assigning IP addresses and other network settings to clients on the network. The process of assigning an IP address to a client involves four stages, commonly known as DORA (Discover, Offer, Request, Acknowledge) stages.



DHCP Process:


Discover:

In the first stage, the client sends a broadcast message on the network requesting an IP address lease. The broadcast message is sent to the destination IP address of 255.255.255.255 or the limited broadcast address of the network.

Offer:

When the DHCP server receives the broadcast message, it replies with an IP address offer. This offer includes the IP address, subnet mask, default gateway, and other network configuration parameters. The server assigns an IP address from a pool of available addresses configured on the DHCP server.

Request:

If the client accepts the IP address offer, it sends a request message to the DHCP server. This request message contains the IP address offered to the client.

Acknowledge:

Finally, the DHCP server acknowledges the client’s request and sends a message to the client with the assigned IP address, subnet mask, default gateway, and other configuration parameters. The client then configures its network settings with the assigned IP address and can start communicating on the network.


Lets Take a Diagram showing DORA process for a PC getting an IP address from a DHCP server:





DHCP Discovery (DHCPDISCOVER): The PC sends a broadcast message to the network requesting an IP address. The source MAC address is that of the PC, and the destination MAC address is a broadcast MAC address. The source IP address is 0.0.0.0, and the destination IP address is 255.255.255.255.


DHCP Offer (DHCPOFFER)
: The DHCP server receives the broadcast message and sends a unicast message back to the PC offering an available IP address. The source MAC address is that of the DHCP server, and the destination MAC address is that of the PC. The source IP address is that of the DHCP server, and the destination IP address is that of the PC.


DHCP Request (DHCPREQUEST)
: The PC sends a broadcast message to the network requesting to use the offered IP address. The source MAC address is that of the PC, and the destination MAC address is a broadcast MAC address. The source IP address is 0.0.0.0, and the destination IP address is 255.255.255.255.


DHCP Acknowledgement (DHCPACK)
: The DHCP server receives the broadcast message and sends a unicast message back to the PC acknowledging that the PC can use the offered IP address. The source MAC address is that of the DHCP server, and the destination MAC address is that of the PC. The source IP address is that of the DHCP server, and the destination IP address is that of the PC.

DHCP Configuration:

To configure DHCP on a Cisco router, follow the below steps:

Configure a pool of IP addresses that the DHCP server can assign to clients.
Configure the DHCP server's default gateway, subnet mask, and DNS server information.
Enable the DHCP service on the router interface that connects to the client devices.

Conclusion:

In conclusion, DHCP plays a crucial role in managing IP address allocation and other network settings on a network. It provides a centralized way of managing IP address assignments and eliminates the need for manual IP address configuration, saving time and reducing errors. DHCP registration process includes the DORA stages, which includes Discover, Offer, Request, and Acknowledge stages. By following the above configuration steps, DHCP can be enabled on a Cisco router to assign IP addresses to clients dynamically.
